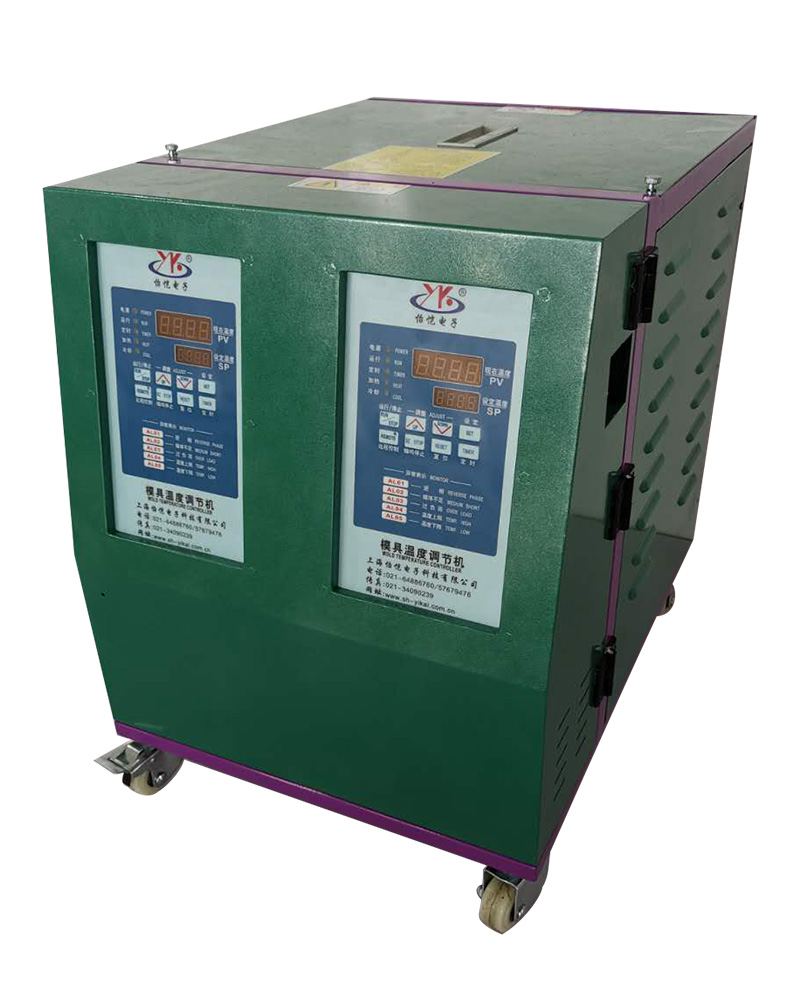

180℃ Oil Temperature Control Unit

180℃ Oil Temperature Control Unit
Features
  • Combining a heating, cooling, and heating medium circulation device as well as a temperature controller, the 180℃ oil temperature control unit features a compact design to save space.
  • The oil temperature controller achieves a working temperature up to 180℃.
  • The microprocessor-based control system provides numerous functions, including timing startup and shutdown as well as alarms. A PID control mode and contactless solid-state relay (SSR) heating method are both used to achieve precise temperature control and extended service life. The temperature is set and displayed in digital form and a standard timer is equipped (up to 99 hours and 59 minutes settable)
  • Alarm signals can be sent to the injection molding machine, which will automatically stop after receiving an alarm signal in order to prevent material waste.
  • The main power switch features different safety functions, including phase loss, overload, current unbalance and current leakage protection. If the SSR is damaged or shorted, the main power switch will automatically trip to protect the heater.
  • The high-pressure and large-flow oil pump features an excellent resistance to corrosion, rust, and contamination, and with its excellent durability, is widely used for maintaining a consistent mold temperature and improving overall molding stability.
Alarms and protections
  • Phase reversal alarm
  • Heating medium (oil) shortage alarm
  • Overload alarm
  • High temperature alarm and auto tripping protection
  • Low temperature alarm
Technical specifications
Model Item YK-HO180-6KW YK-HO180-12KW YK-HO180-24KW
Heating medium Heat conduction oil
Working temperature 180℃
Control mode PID control
Heating tube power (KW)(200v/380v/415v) 6.0 12.0 24.0
Pump Motor power (KW) 0.37 0.75 1.5
Max. pressure (MPa) 0.28 0.38 0.5
Max. flow(L/min) 42 56 110
Heat conduction oil Total volume (L) 20 25 40
Reserve oil volume (L) 13 13 26
Cooling method Indirect cooling
Cooling valve flow coefficient (Cv) 0.54 0.8 1
Tube diameter Hot oil tube 3/8(10A) *2 circuit 3/8(10A) *4 circuit 3/8(10A) *8 circuit
Cooling water tube 15A
Power supply AC200V±10%/60(50) Hz 3P AC220V±10%,50/60Hz 3P AC/380V/415V/50Hz 3P
Total power (KW)(200v/380v/415v) 6.37 12.75 25.5
Cooling water flow (L/Min) ≥15 ≥25 ≥45
Cooling water pressure (MPa) 0.1～0.5 14.63 22.05 24.35 27.08 39.6
Dimensions (L*W*H) (mm) 700*290*640 700*290*6400 790*360*850
Weight (Kg) 85 93 135

Shown above are standard oil temperature control unit models. We also offer customized oil temperature controllers to meet your specific requirements.
