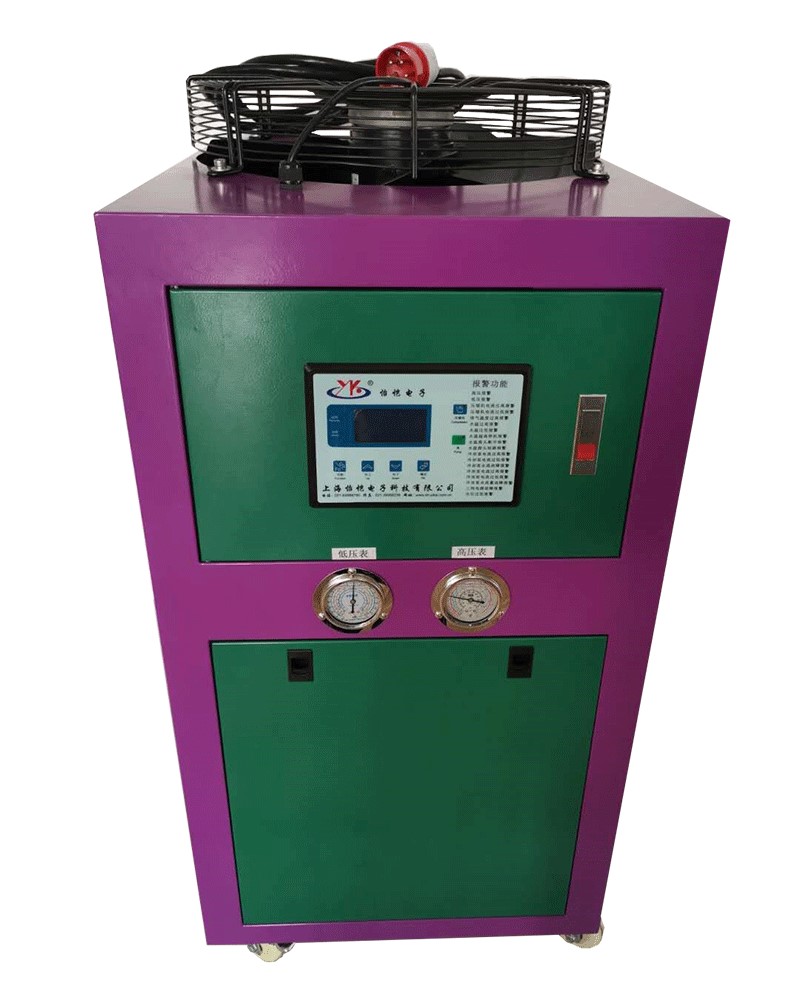

Air Cooled Chiller

The entire air cooled chiller 304 stainless steel multistage pump 316 stainless steel plate evaporator aluminum finned tube condenser.

Features
  • Branded and reliable compressor with built-in safety protection devices: it features a low noise, high durability and energy efficiency.
  • Alco thermostatic expansion valves.

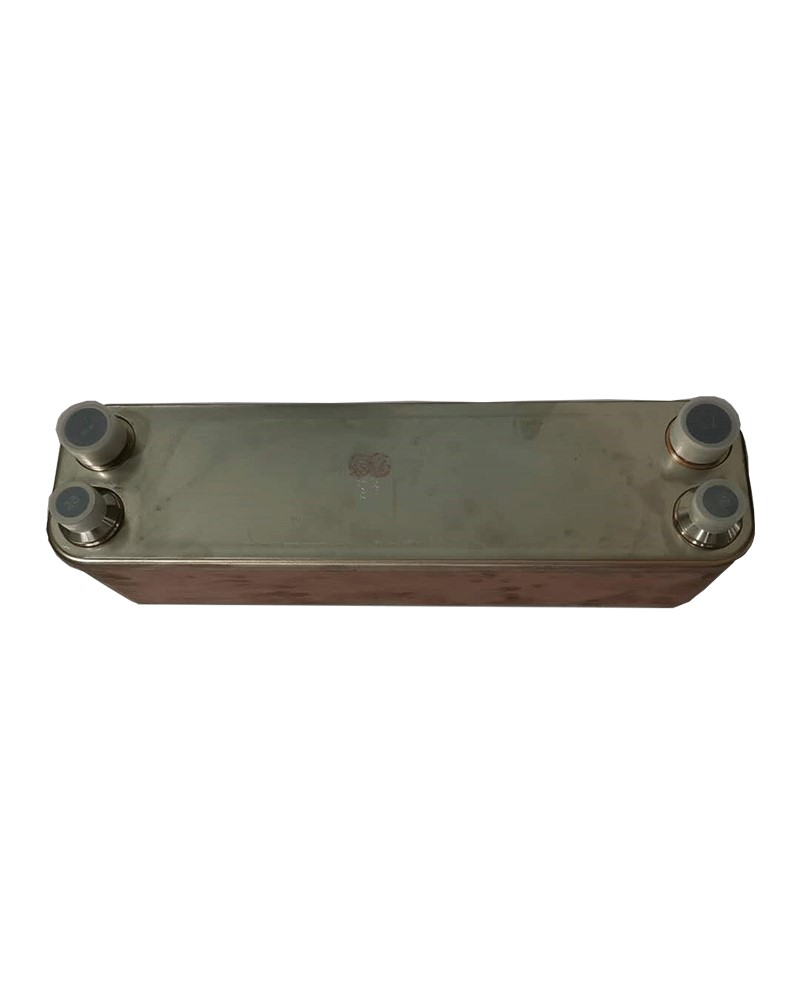

  • The condenser and evaporator are made using 316 stainless steel plate heat exchangers to increase the cooling efficiency by 30%.
  • The water tank, piping and pump are made SUS304 stainless steel, and feature an exceptional resistance to corrosion and pressure, ensuring they each have an exceptional durability and reliability.
  • The microcomputer-based control system automatically controls and monitors machine operations with an excellent stability, high precision and low failure rate.
  • Alarms and protections for the refrigerant over high or low pressure, compressor motor overload, abnormal refrigeration, abnormal coolant fluid temperature, temperature probe disconnection, phase reversal or loss.

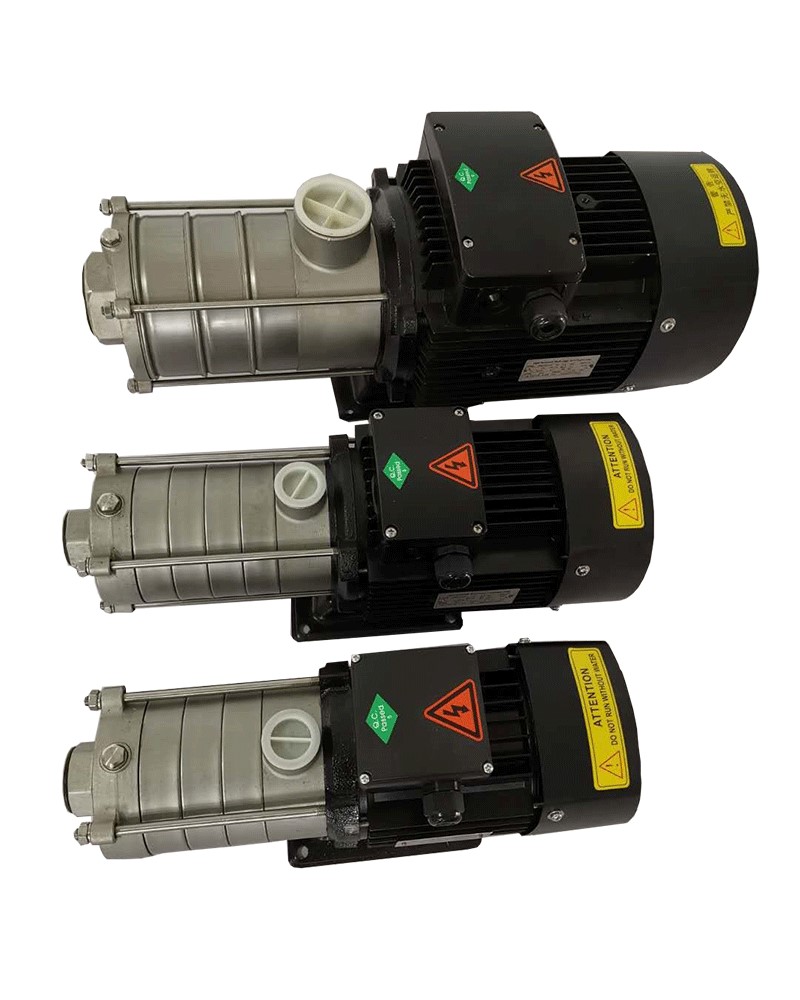

  • Durable high-pressure and large-flow stainless steel magnetic pumps offer a uniform temperature and enhance production stability.
Technical specifications
Model Item YK-CWF-3 YK-CWF-5 YK-CWF-8 YK-CWF-10
Temperature range 5-25℃
Cooling medium Water
Cooling capacity (KW×50Hz) 10℃ 7.5 12.6 19.0 26.0
15℃ 9 14.5 22.0 29.5
Compressor Rated power（KW） 2.2 3.7 6 7.5
Refrigerant R22 R407C R410A
Evaporator Type Stainless steel plate evaporator

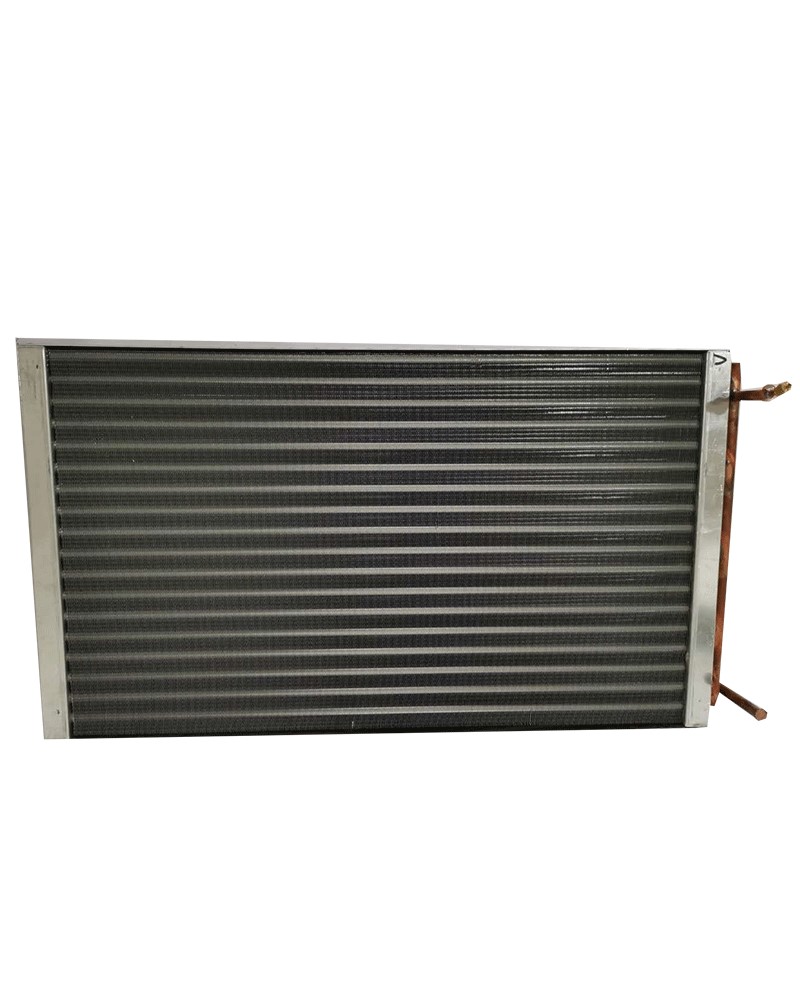

Condenser High efficiency aluminum brazed finned tube condenser
Cooling fan Power（KW） 0.24*1 0.38*1 0.38*2 0.38*2
Air flow（m/h） 4000 6000 6000*2 6800*2
Water tank capacity（L） 60 120
Process pump Rated output power（KW） 0.55 0.75 1.5
Max. pressure（MPa） 0.35 0.36 0.37
Max. flow（L/min） 50 90 150
Total power（KW） 3 4.9 8.3 9.8
Breaker capacity（A） 25(200V, 3P) 40(200V, 3P) 63(200V, 3P) 100(200V, 3P)
25(380V, 3P) 25(380V, 3P) 32(380V, 3P) 32(380V, 3P)
Supply Voltage AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P
Alarms Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss
Dimensions（W×D×Hmm） 1100*540*1000 1300*640*1150
Technical specifications
Model Item YK-CWF-15 YK-CWF-20
Temperature range 5-25℃
Cooling medium Water
Cooling capacity (KW×50Hz) 10℃ 38.8 52.0
15℃ 44.1 59.0
Compressor Rated power（KW） 11.25 7.5×2
Refrigerant R22 R407C R410A
Evaporator Type Stainless steel plate evaporator
Condenser High efficiency aluminum brazed finned tube condenser
Cooling fan Power（KW） 0.8*2 0.9*2
Air flow（m/h） 12200*2 15670*2
Water tank capacity（L） 200 250
Process pump Power（KW） 2.2 2.4
Max. pressure（MPa） 0.5 0.45
Max. flow（L/min） 200 266
Weight（Kg） 650 800
Total power（KW） 15 19
Breaker capacity（AT） 125(200V, 3P) 200(200V, 3P)
63(380V, 3P) 63(380V, 3P)
Supply voltage AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P AC380V±10%
Alarms Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss
Dimensions（W×D×Hmm） 1310*700*1400 1600*800*1800

Standard air-cooled chiller models are shown above. Yikai also offers customized options to meet customer expectations. to meet your expectations.
