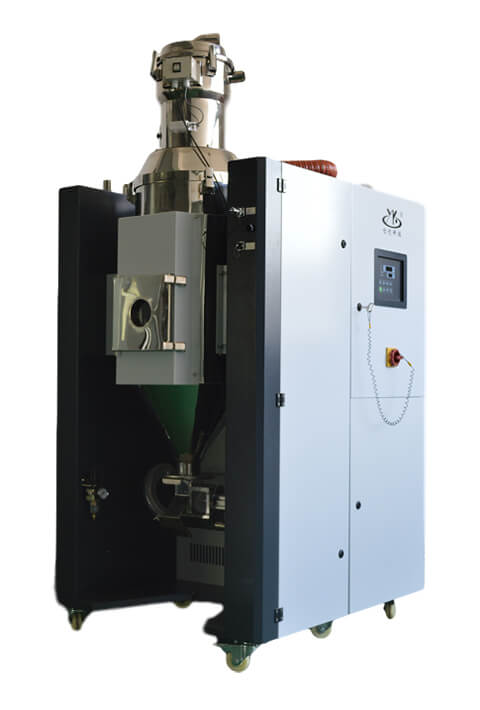

Silo Dehumidification System

Silo Dehumidification System
Features
  • User-friendly human machine interface for precise temperature control.
  • The qualified honeycomb rotor provides stable dehumidification performance, is easy to clean and has a long service life.
  • The silo dehumidification system is equipped with a detachable cooler that is easy to maintain and ensures a lower return air temperature.
  • A high-density return air filter protects the honeycomb rotor from dust or contamination.
  • Double-layer insulated down-blowing stainless-steel dryer.
  • A hot air closed loop conveying system is optional for hot material conveying, eliminating the possibility of moisture re-absorption that would contaminate the resin.
  • A food-grade hopper dryer is optional to meet the production needs for food-grade products.
  • The air filter is easy to clean and replace. It also features a transparent window for easy monitoring.
  • Delivering a dewpoint of -40°C after air dehumidifying.
Technical specifications
Model Loading Capacity Electricity Drying Capacity Compressed Air Supply Dimensions Weight(kg) With Injection Molding Machine (Ton)
Liter kg Heater Blower Feed Blower Compressor Traffic Demand L W H
Dried Supply
YKSG630-15 25 15 1.5 0.05 1.1KW 5.0 0.75KW 70L/min 800 580 1500 180 10-50
YKSG630-25 46 25 2.5 0.08 1.1KW 9.2 1.5KW 120L/min 980 750 1800 230 50-100
YKSG630-50 86 50 4 0.1 1.1KW 17.2 2.2KW 190L/min 980 750 2000 280 100-150
YKSG630-75 130 75 5 0.1 1.1KW 24.8 2.2KW 190L/min 980 750 2100 280 100-150
YKSG630-100 175 100 6 0.2 1.5KW 35 3.7KW 300L/min 1100 750 2100 350 200-300
YKSG630-150 250 150 8 0.2 1.5KW 48 3.7KW 420L/min 1100 750 2100 350 300-400
YKSG630-200 340 200 10 0.33 1.5KW 60 5.5KW 520L/min 1300 1000 2100 460 400-500
