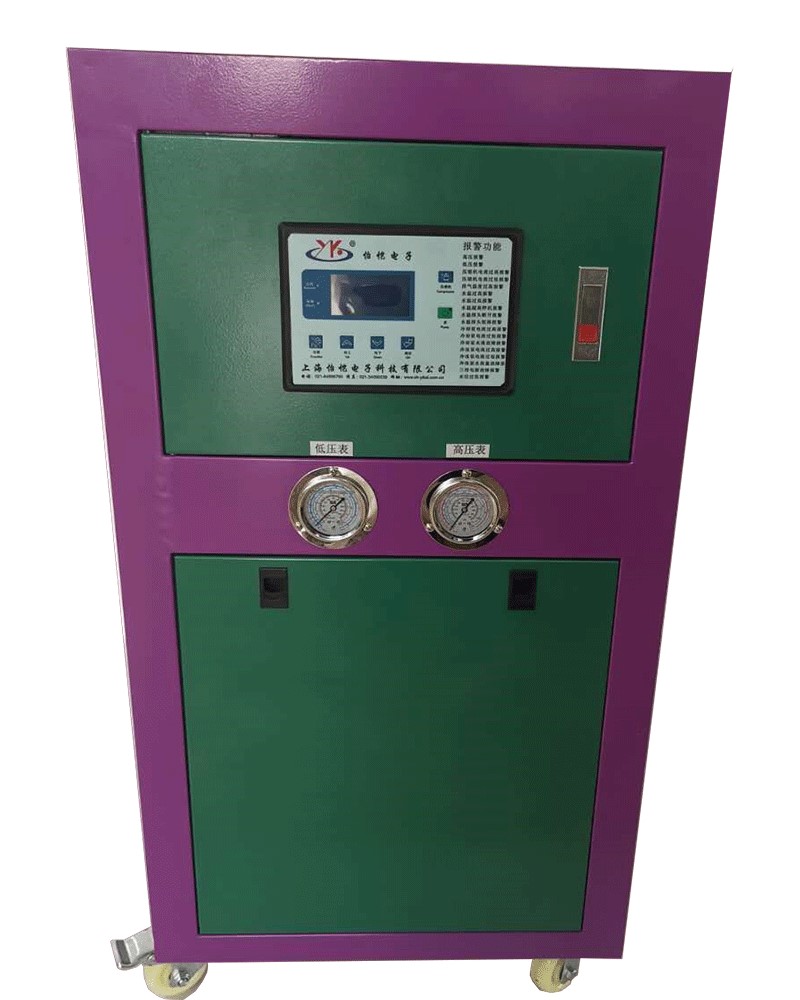

Water Cooled Chiller

The complete water-cooled chiller 304 stainless steel multistage pump 316 stainless steel plate condenser and evaporator.

Features
  • The branded compressor comes with built-in safety protection devices and features a low noise, excellent energy efficiency and exceptional durability.
  • Alco thermostatic expansion valves.

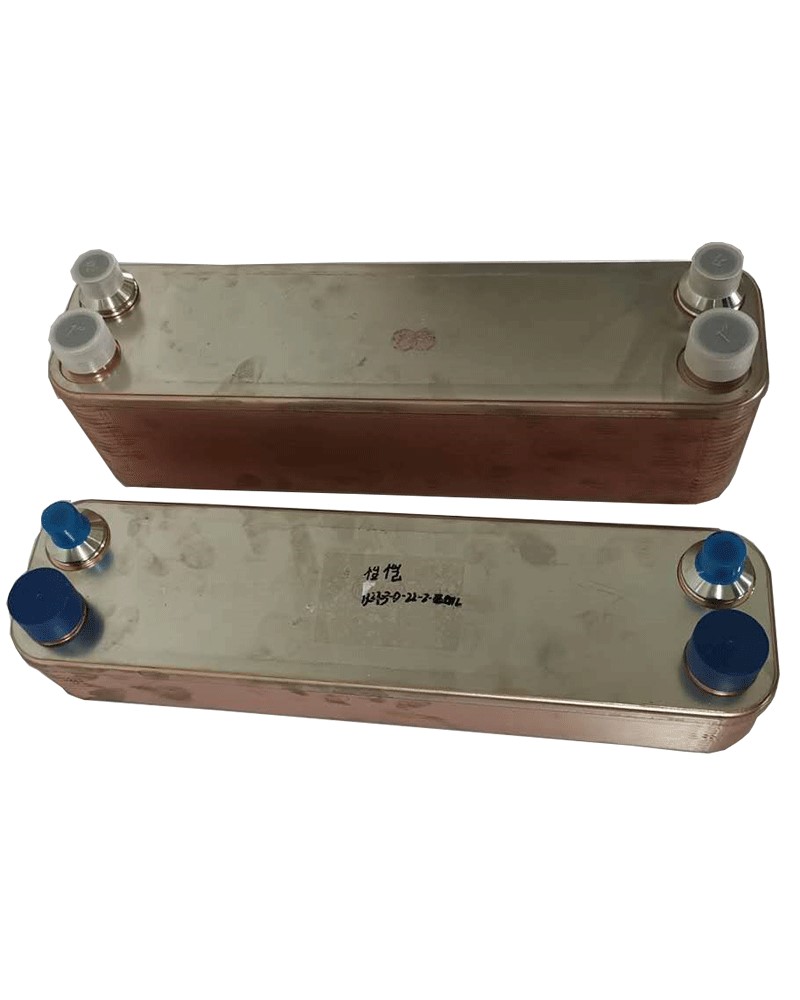

  • The condenser and evaporator use 316 stainless steel plate heat exchangers to increase the cooling efficiency by 30%.
  • The water tank, piping and pump are SUS304 stainless steel and feature an excellent resistance to corrosion and pressure, while also ensuring an excellent durability and reliability.
  • The microcomputer-based control system will automatically control and monitor the machine operations with an excellent stability, high precision, and low failure rate.
  • Alarms and protections for the refrigerant over high or over low pressure, overload, abnormal refrigeration, abnormal temperature of the coolant fluid, temperature probe disconnection, phase reversal or loss, and more.

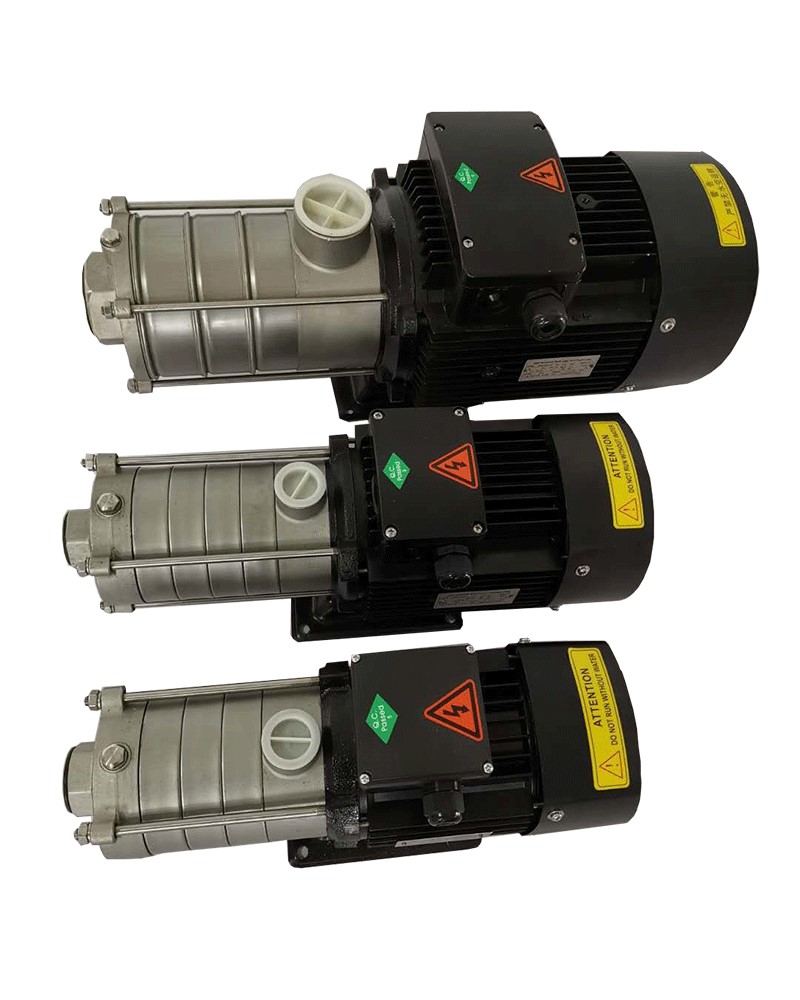

  • Durable high-pressure and large-flow stainless steel magnetic pumps aid in offering a consistent temperature and enhancing the molding stability.
Technical specifications
Model Item YK-CWS-3 YK-CWS-5 YK-CWS-8 YK-CWS-10 YK-CWS-15
Temperature range 5-25℃
Cooling medium Water
Cooling capacity （KW） 10℃ 7.5 12.6 20.5 26.5 41.5
15℃ 9 14.8 24 31 49
Compressor Power (KW） 2.2 3.7 6 7.5 11.2
Refrigerant R22 R407C R410A
Condenser Type 316 stainless steel plate condenser
Evaporator 316 stainless steel plate evaporator
Water tank capacity（L） 60 120 150
Process pump Power（KW） 0.55 0.75 1.5 2.2
Max. pressure（MPa） 0.36 0.37 0.39 0.5
Max. flow（L/min） 50 90 150 200
Cooling water flow（L/min） 50 76 115 139 206
Weight（Kg） 225 245 325 345 465
Total power（KW） 2.75 4.5 7.5 9 13.4
Breaker capacity（A） 25(200V, 3P) 40(200V, 3P) 63(200V, 3P) 100(200V, 3P) 100(200V, 3P)
25(380V, 3P) 25(380V, 3P) 32(380V, 3P) 32(380V, 3P) 40(380V, 3P)
Supply voltage AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P
Alarms Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss
Dimensions（W×D×Hmm） 1100*540*1000 1300*640*1150 1300*700*1300
Technical specifications
Model Item YK-CWS-20 YK-CWS-30
Temperature range 5-25℃
Cooling medium Water
Cooling capacity（KW×50Hz） 10℃ 53 83
15℃ 62 98
Compressor Rated power（KW） 7.5×2 11.25×2
Refrigerant R22 R407C R410A
Evaporator Type 316 stainless steel plate evaporator
Condenser High efficiency aluminum finned tube condenser
Water tank capacity（L） 250 300
Process pump Rated output power（KW） 2.4 3
Max. pressure（MPa） 0.45 0.4
Max. flow（L/min） 260 360
Cooling water flow（L/min） 279 417
Weight（Kg） 665 1000
Total power（KW） 17.4 25.5
Breaker capacity（A） 125（200V，3P） 200（200V，3P）
63（380V，3P） 100（380V，3P）
Supply voltage AC200V±10%/60(50)Hz 3P AC/380V/415V/50Hz 3P
Alarms Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss
Dimensions（W×D×Hmm） 1300*700*1350 1600*800*1500

The models shown above are standard water-cooled chillers. At Yikai, we also offer customized water-cooler chillers to meet your specific requirements.
