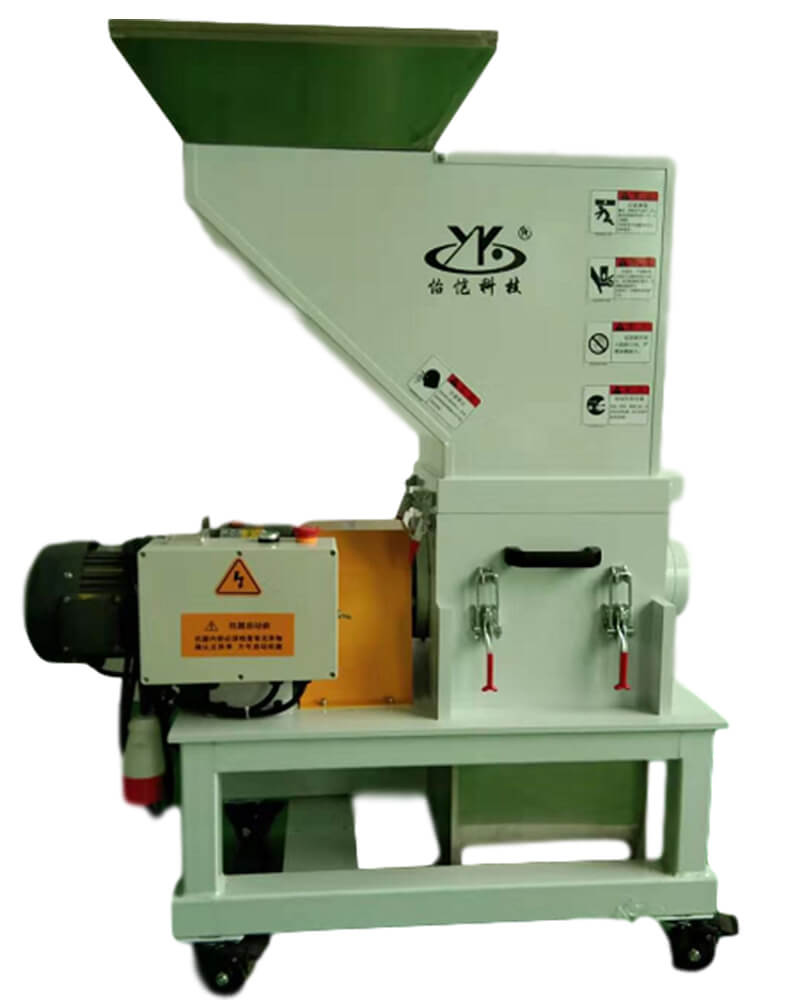

Low Speed Granulator

Low Speed Granulator
Features
  • Application. The low speed granulator is designed for granulating degraded materials or rejected parts made of PC/Nylon/PP/ABSS.
  • Time and cost saving: wasted parts can be recycled within 20 seconds with no need for waiting for centralized crushing, thus reducing labor, management and storage costs.
  • Easy to detach, clean and maintain. The granulator features an easy material changeover and fast cleaning, making it suitable for working with the injection molding machine.
  • Environmentally friendly and energy saving: The granulator delivers consistent granule sizes (3-8mm), minimizes dust and reduces noise level (80-95db). A time relay is equipped to reduce power consumption.
  • Superior blades: high strength steel SKD-11 blades feature an excellent fineness, excellent toughness and excellent high temperature resistance.
  • Motor overload protection and power interlock protection functions are designed to improve operation safety.
Technical specifications
Model YKMS-1.5HP YKMS-2HP YKMS-3HP YKMS-3HP-G YKMS-5HP
Cutting chamber size(mm) 250x300 320x320 320*430 400x356 406x516
Granulation capacity(kg/h) 15-20 35-45 50-60 60-80 80-100
Rotor speed 23
Motor power (HP) 1 2 3 3 5
Machine power (KW) 1.1 1.5 2.2 2.2 3.7
Blade type Hook Blade
Number of rotor blades (PCS) rotating blade*2+hob*3 rotating blade*2+hob*3 rotating blade*3+hob*4 rotating blade*3+hob*4 rotating blade*3+hob*4
Number of fixed blades (PCS) 6 6 8 8 8
Blade material SKD-11 SKD-11 SKD-11 SKD-11 SKD-11
Noise level(dB) 70-75 (don't include background sound)
Plastic feeding method Feed hopper/material suction loader/material blower feeder
Dimensions (L*W*H) (mm) 910*320*1120mm 1090*430*1220mm 1090*430*1260mm 1090*430*1260mm 1240*610*1580mm
Weight (Kg) 150 200 260 280 500
