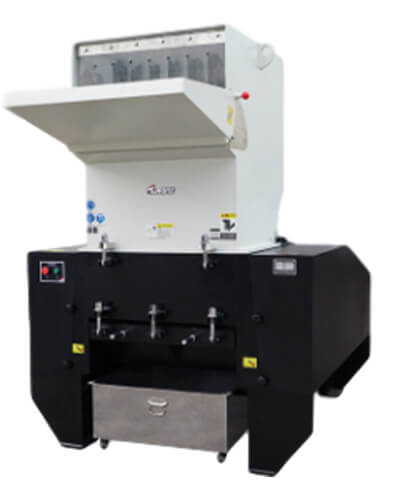

High Speed Granulator

High Speed Granulator
Features
  • The SKD-11 blades are solid and durable.
  • The safety protection switch ensures operator safety.
  • A stainless-steel feeding port with a soundproof housing decreases the noise level and allows for a fast cleaning.
  • Different cutting blades and screens with different hole sizes are optional.
  • A caster mounted base saves floor space and provides greater movability.
  • The granulator is easy to detach for a quick screen replacement and machine cleaning.
  • Super soundproof high-speed granulators are available.
  • Motor overload protection and power interlock protection functions are designed to protect both the motor and blades.
Parameters
Standard models YKQF-300 YKQF-400 YKQF-500 YKQF-600 YKQF-700 YKQF-800 YKQF-1000*400 YKQF-1000*600
Motor power (KW) 5.5 7.5 11 15 22 30 30 37
Rotor speed (rpm) 610 580 600 500 490 440 440 4330
Blade material 9CrSKD-11、LSMF
Number of rotor blades (PCS) 9 12 15 18 21 24 6 6
Number of fixed blades (PCS) 2 2 2 4 4 4 4 4
Rotor diameter (mm） 215 245 245 290 360 400 400 600
Feed port size (mm） 300*210 400*230 500*250 600*300 700*350 800*400 1000*400 1000*550
Dia. of standard screen hole (mm) 8 10 10 12 12 12 12 14
Dia. of optional screen hole (mm) 6,10,12,14,18,25
Hopper optional upon request
Granulation capacity(kg/h) ≤200 ≤300 ≤500 ≤600 ≤700 ≤800 ≤1000 ≤1200
Dimensions (L*W*H) cm 122*72*116 132*86*146 145*100*154 170*115*188 196*127*210 222*138*238 220*160*240 260*160*300
Weight (kg) 300 430 580 850 1325 1800 2000 2400
